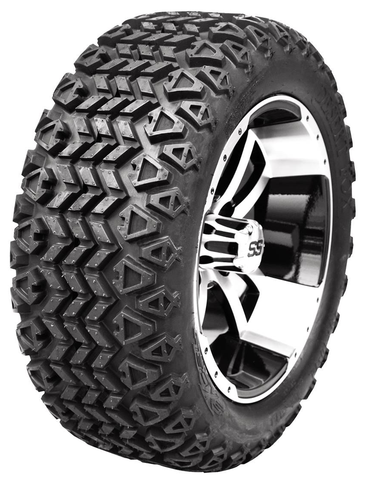

DESERT FOX
TIRE SPECIFICATIONS
| TREAD | MAX | ||||||
| OD | SW | DEPTH | LOAD | ||||
| SIZE | PLY / LSI | Inches | Inches | RIM | 32nd | MAX PSI | LBS |
| 20X10-8 | 4 / 76J | 19 | 9.1 | 7 | 14 | 20 | 880 |
| 20×10-10 | 4 / 56J | 20 | 8.9 | 7 | 14 | 20 | 500 |
| 22X11-10 | 4 / 80J | 22.6 | 9.8 | 7 | 14 | 20 | 990 |
| 22X11-12 | 4 / 70F | 22 | 9.7 | 7 | 15 | 25 | 735 |
| 23X10.50-12 | 4 / 80J | 22.6 | 9.6 | 7 | 17 | 20 | 990 |
| 25X10.50-12 | 4 / 93J | 24.1 | 9.2 | 7 | 14 | 20 | 1430 |
| 23X10-14 | 4 / 81J | 23 | 8.9 | 7 | 19 | 20 | 1010 |
- Rugged and solid performer
- Non-Directional tread pattern
- Smooth Ride on dirt and pavement yet easy on the turf.
