TIRE SPECIFICATIONS
| TREAD | MAX | ||||||
| OD | SW | DEPTH | LOAD | ||||
| SIZE | PLY | Inches | Inches | RIM | 32nd | PSI | LBS |
| 145/70R6 | 2 | 14.4 | 5.5 | 4.5 | 8 | 4 | 77 |
| 15X7R6 | 2 | 15.4 | 6.7 | 5.5 | 10 | 5 | 102 |
| 16X8R7 | 2 | 16.5 | 6.7 | 6.5 | 13 | 3 | 114 |
| 18X9.50-8 | 2 | 18.3 | 8.9 | 7 | 13 | 7 | 200 |
| 20X7R8 | 2 | 19.8 | 6.7 | 5.5 | 11 | 7 | 157 |
| 20X9R8 | 2 | 20.4 | 8.5 | 7 | 15 | 3 | 132 |
| 21X9R8 | 2 | 21.1 | 8.8 | 7 | 15 | 3 | 187 |
| 22X11R8 | 2 | 23 | 9.8 | 9 | 18 | 4 | 275 |
| 25X12R9 | 2 | 24.5 | 11 | 9.5 | 17 | 4 | 355 |
| XTR | |||||||
| 25x8R12 | 6 | 25.1 | 7.7 | 6.5 | 19 | 7 | 340 |
| 25X10R12 | 6 | 25.1 | 9.8 | 8 | 19 | 7 | 420 |

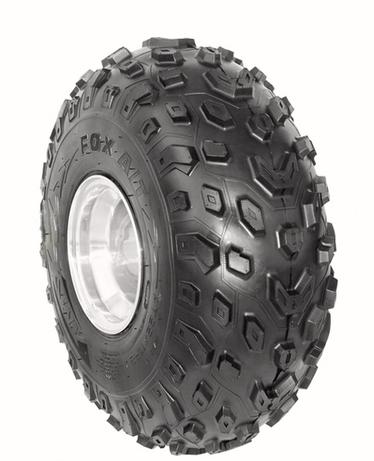

FOX A/T
- All terrain knobby
- Semi-Aggressive lug
- 2 Ply carcass
- XTR has 6 ply carcass
- Natural rubber compound for a smooth ride
