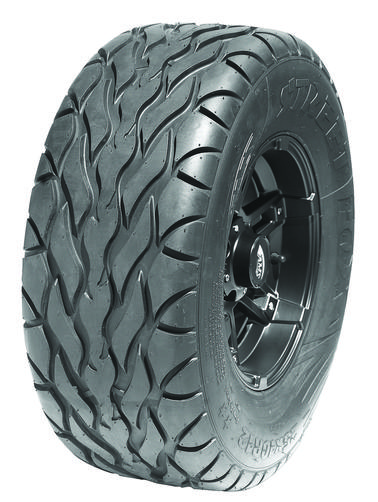

STREET FOX
TIRE SPECIFICATIONS
| TREAD | MAX | ||||||
| OD | SW | DEPTH | LOAD | ||||
| SIZE | PLY / LSI | Inches | Inches | RIM | 32nd | MAX PSI | LBS |
| 20X11.00R9 (275/50R9) | 4 / 55N | 19.49 | 10.35 | 9 | 11 | 20 | 480 |
| AT21X7R10 (175/80R10) | 4 / 43N | 20.98 | 6.73 | 5.5 | 11 | 20 | 340 |
| 23X11.00R10 | 6 / 100B | 23.43 | 10.24 | 8 | 10 | 32 | 1760* |
| AT25X8R12 (200/80R12) | 4 / 57N | 25.12 | 8.35 | 7 | 11 | 20 | 500 |
| AT25X10R12 (245/65R12) | 4 / 63N | 25.12 | 9.69 | 7 | 11 | 20 | 600 |
| * 23x11R10 - 800lbs @ 10 PSI, 1320lbs @ 24 PSI, 1760lbs @ 32 PSI | |||||||
- Lightweight aggressive RADIAL CONSTRUCTION
- Large footprint for superior traction and handling on the Street or Turf
- DOT for street legal use
- Smooth Ride and quiet operation
- 23x11.00R10 @ 1760lbs max load is great for the Kawasaki Mule on the street!
