• Light weight all purpose tread
  • Street, Dirt or Turf
  • DOT for street legal use
  • Smooth Ride
  • Quiet operation

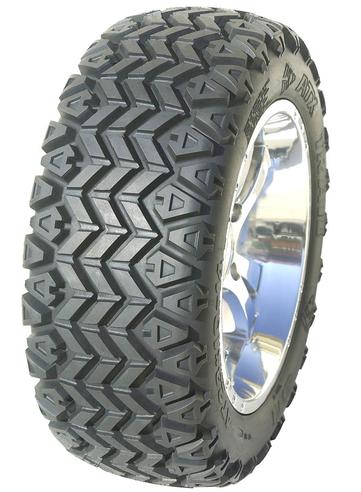

ATX TRAIL

TIRE SPECIFICATIONS

TIRE SPECIFICATIONS

          TREAD   MAX
    OD SW   DEPTH   LOAD
SIZE PLY / LSI Inches Inches RIM 32nd MAX PSI LBS
AT 20x10-10 4 19.5 9.9 7 15.4 20 1102
AT 22x10-10 4 / 89J 22.5 10.2 7 14.6 20 1278
AT 23x11-10 6 / 100J 23.6 11.1 7 16 20 1763
AT 23x10-12 4 / 93J 22.9 10.2 7 15 20 1433
AT 25x10-12 4 / 45J 24.5 11 7 15.5 20 364
AT23x10-14 4 / 60J 23 8.6 7 17.9 20 550
